Voice Alarm Loudspeaker 6W
5" 6W BS5839 Part 8 VA compliant metal cabinet speaker complete with ceramic terminal block and thermal fuse. 1st fit 2nd fit mounting arrangement, to allow full circuit test before final connection. Can be glanded for side entry or into the rear of the unit for discreet cabling. The speaker also has low profile for wall mounting safety.
Installation, Operation and Maintenance Procedure
- Mount cabinet to wall/ceiling with 4 suitable screws.
- If 70V, replace red cable with the green cable in the terminal.
- Connect cable to terminal and fasten the front part to the cabinet with 2 provided screws.
- For optimum performance, always use the correct voltage / power and operate within the frequency limits as stated.
- Do not open loudspeaker when energized.
| GENERAL |
|---|
| GENERAL | |
|---|---|

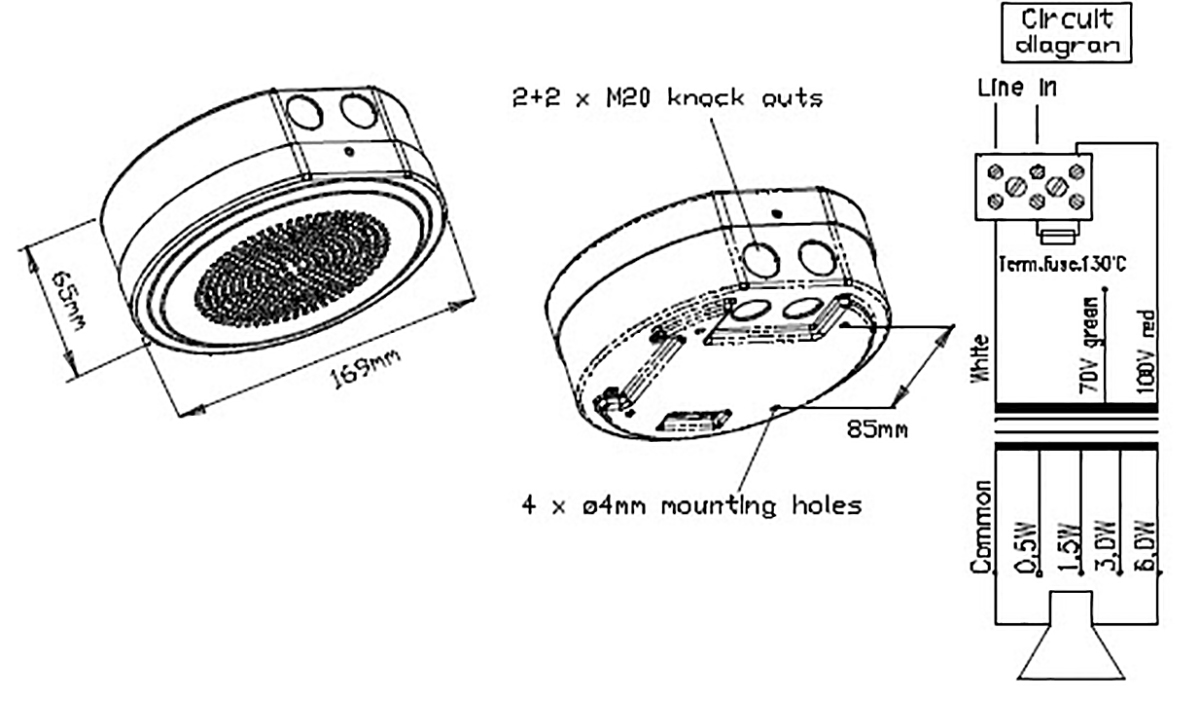

| Dimesions (mm) | Ø169 x D65 |
| Material / Color | Steel / White |
| Mounting | Four screws |
| Termination | Ceramic terminals |
| Weight | 1,3 kg |
| Max. / min. amb. temp | 90°C / -20°C |
| Rated / max. power | 6 W / 6 W |
| SPL 1W/1m | 90 dB |
| SPL rated power | 97 dB |
| Effective freq. range | 180 – 13000 Hz |
| Dispersion (-6dB) 1kHz / 4kHz | 187° / 77° |
| Power tapping | 0,5W, 1,5W, 3,0W, 6,0W |
| Cable inlet | 2+2 M20 knock outs for cable gland |
| Fuse | Term. fuse 130°C |
| IP rating | IP55 |
