ZENITEL DSP-15EEXMNT

08-09

DSP-15EEXMNT

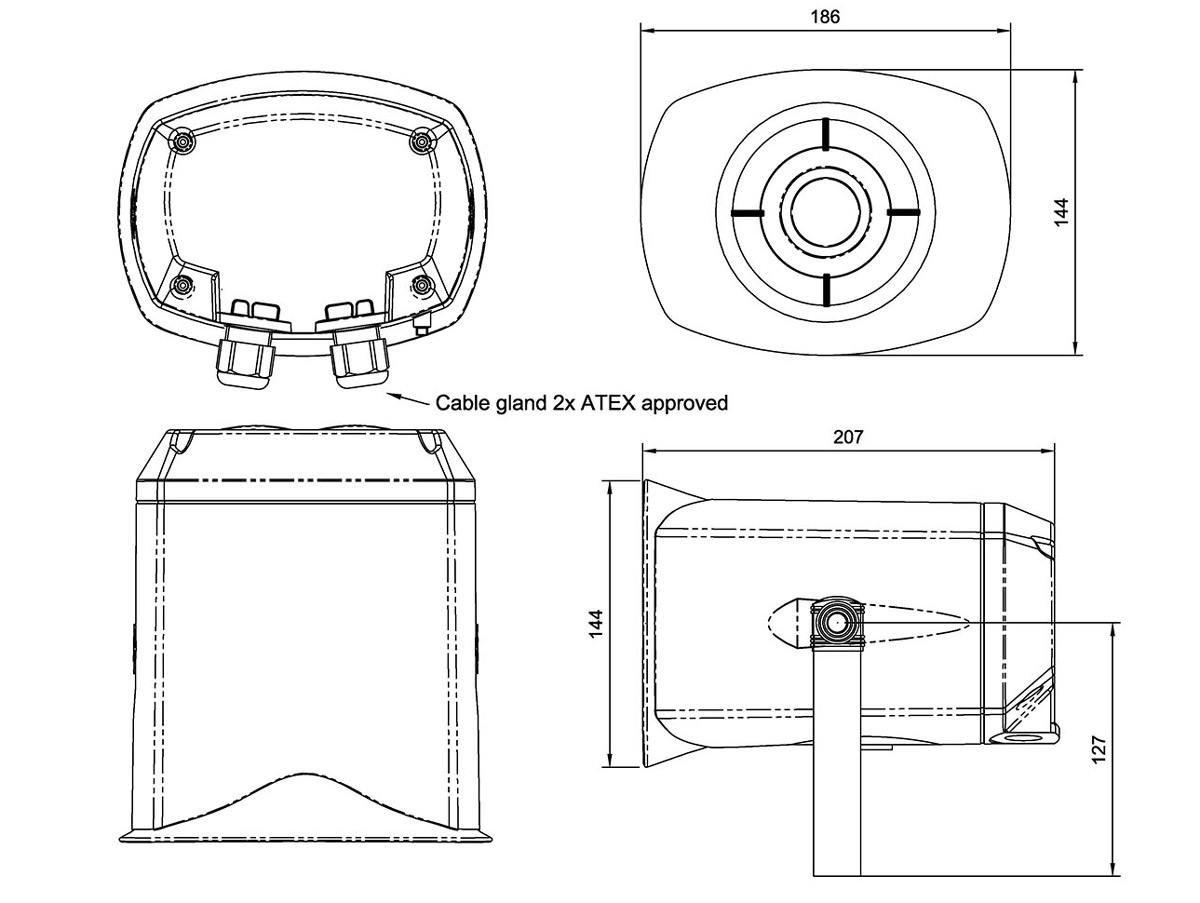

EX Speaker 15W With Two Cable Inlets

Description(active tab)

With 100V line transformer
Rated /max. power 15W
Tappings: 0,8W - 1,5W - 3,0W - 4,0W - 8,0W 15,0W
Material: Antistatic PA / Black
Bracket and all outside nuts and screws in stainless steel

When mounting the loudspeaker please ensure that it is re-assembled in the same manner in which it was received. Fasten bracket with 1-3 screws. To change the position of the loudspeaker, please adjust the standard U- bracket (by loosening / tightening the screws) as required.

For optimum performance, always use the correct voltage / power and operate within the frequency limits as stated. Use only certified/specified cable glands and blanking plugs. Do not open loudspeaker when energized. Fasten lid with a torque of 2 - 3 Nm

DSP-15EExmNT can be delivered as 25W version with transformer.

GENERAL
Material / Color	Anti-static PA / Black
Mounting	Bracket
Termination	e-chamber, push terminals
Weight w/ transformer	2,2 kg
IP-rating	IP-66/67
Max / min amb temp.	50°C / -50°C
Rated / max. power	15 W / 30 W
SPL 1W/1m	105 dB
SPL rated power	116 dB
Effective freq range	380-7000 Hz
Dispersion (-6dB) 1kHz / 4kHz	200° / 50°
Directivity factor, Q (1kHz)	1,8
