ZENITEL SPA-M6S-V2

08-09

PA Panel Single W/6 Zones, All Call and Dimmer-Flush-W/Goose

Description(active tab)

PA-panel for single system
Delivered with gooseneck microphone
Built-in pre-amplifier with preset signal level and tone controls
6 zone selection buttons
ALL, TALK and dimmer buttons. Talk button on panel
Replaceable text label to each zone button
Zone buttons have activation confirmation light
Flush mounting, back box for wall mounting is available
Local mute contact for external loudspeaker (From hardware version 4.0)

This Vingtor-Stentofon Panel gives messages in one to six zones in a SPA-V2 public address and general alarm single system. Installation in consoles or on-wall indoor.

Local mute function is used to break audio to loudspeakers where proximity to pa panel cause feedback. Available from hardware version 4.0. This function must be in combination with relay box

GENERAL

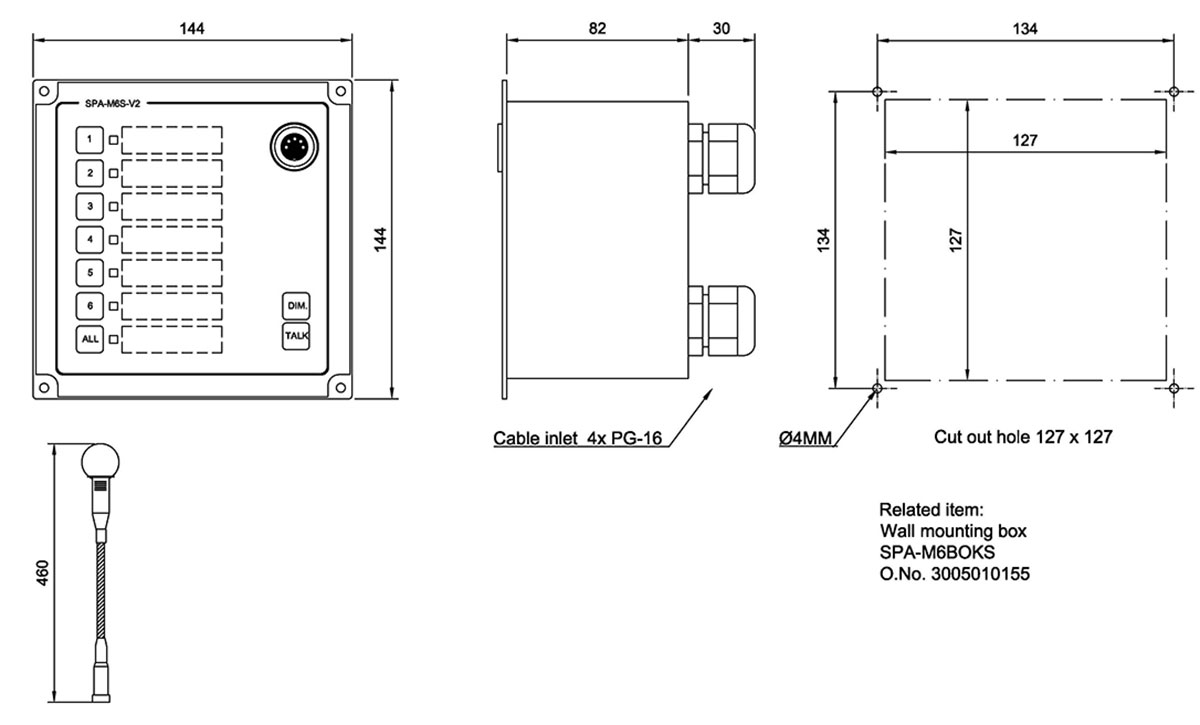

Size (WxHxD)	144 x 144 x 82
Weight w/microphone	0. 6 kg
Material	Black anodized aluminium
Mounting	Flush, wall with use of back box
Output signal	0.775mV 0dB
Sensivity microphone	2K / 4mV
Connections	Plugable screw terminals for 2.5 mm2 cable
Cable glands	4 x PG-16
Cable size	6 x 2 x 0.75 mm2
Local mute relay, output	24V DC @ maximum 50mA
IP-rating	IP-44
