ZENITEL SPA-AC6 Single Alarm Panel

08-09

Description(active tab)

Alarmpanel for single system

Activating abandon, general or manual alarms

Alarm reset button

Replaceable text label for each button

Separate Emergency button (EMS) for PA-message

Hinged transparent protecting cover for all buttons

To be used together with SPA-M6

Flush mounting, back box for wall mounting is available

The alarm panel can start three alarms and emergency message in a SPA-V2 public address and general alarm single system. To be used together with PA panels. For installation in console and indoor use.

GENERAL

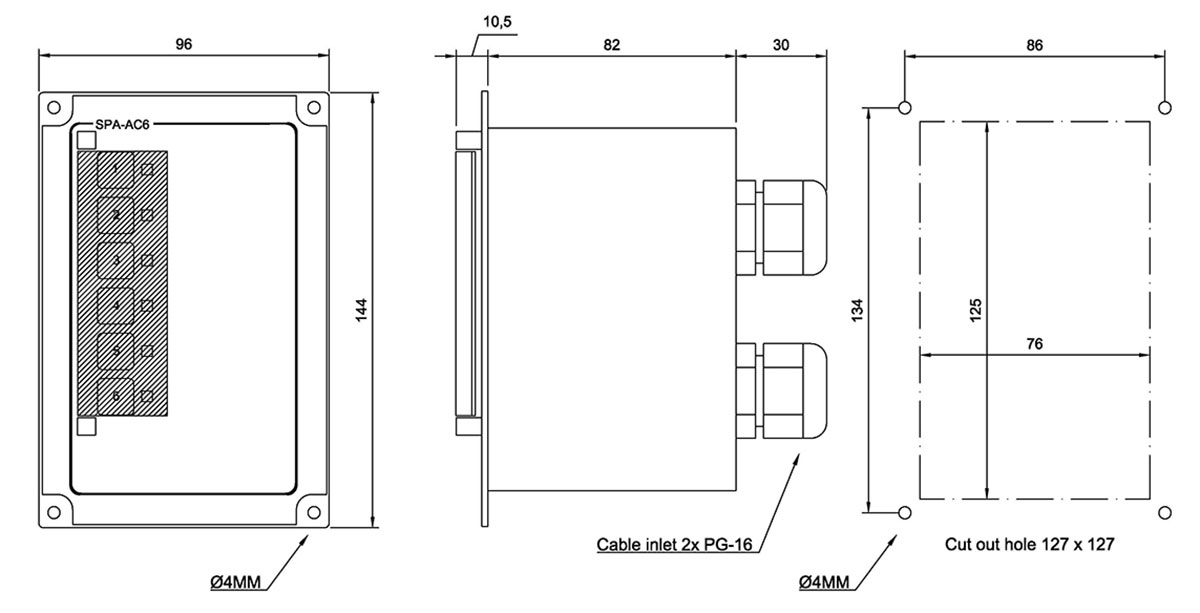

Size (WxHxD) 96 x 144 x 82

Weight 0.4 kg

Material Black anodized aluminium

Mounting
Flush, wall with use of back box

Connections Plugable screw terminals for 2.5 mm2 cable

Cable glands 2 x PG-16

Cable size 6 x 2 x 0.75mm2

IP-rating IP-44

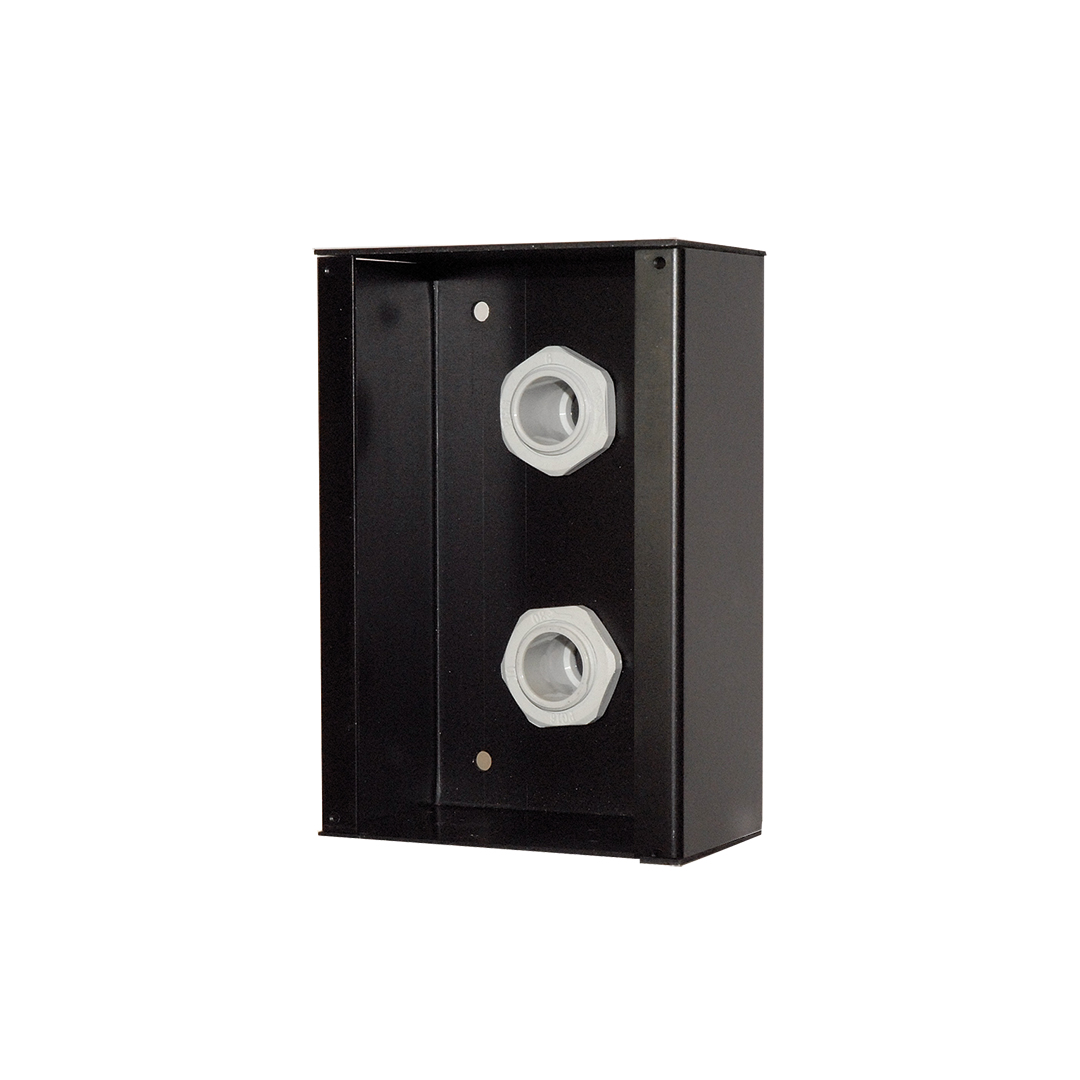

ACBOKS

For SPA-AC6 Panels When Wall Mounted
